[Cloud Anchors] ARCore Extensions for Unity's AR Foundation

Unity 2020.3.2f1



Window - Package Manager -

AR Foundation 4.15

AR Core XR Plugin 4.15

ARKit XR Plugin 4.15

Multiplayer HLAPI 1.1.1

AR Core Extensions From git URL ( + button in Package Manager)

If meta file error occured, download arcore-unity-extension.zip.

Unzip somewhere.

At Package Manger, Add package from disk & find package.json from unzipped folder

https://github.com/google-ar/arcore-unity-extensions

google-ar/arcore-unity-extensions



File - BuildSettings - PlayerSettings -

 OtherSettings

  GraphicAPIs--------------------------->Delete Vulkan

  Multithreaded Rendering------------>Unchecked

  Minimum API Level------------------->7.0 Nougat API Level 24



 XR Plug-in Management-------------->Android Icon, Plug-in Providers, AR Core Check



 Publishing Settings

  KeystoreManager-------------------->Make own keystore





Edit - ProjectSettings - Services -

 Organization--------------------------->Select organization





Install JDK 8.0

Install Android Studio



Setting Up OAuth 2.0

You should have project in  Google Cloud Platform

https://console.cloud.google.com/getting-started

Google Cloud Platform

https://support.google.com/cloud/answer/6158849

Setting up OAuth 2.0 - Google Cloud Platform Console 고객센터

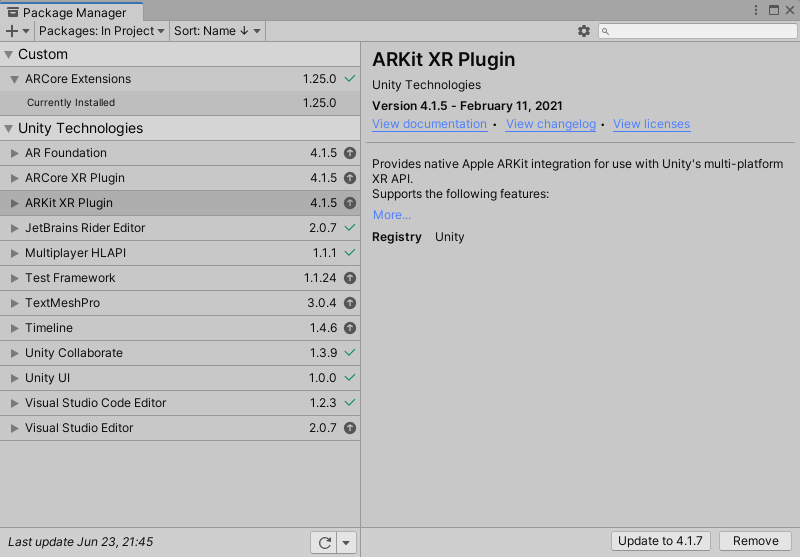

AR assets are 4.1.5 version, Multiplayer HLAPI 1.1.1

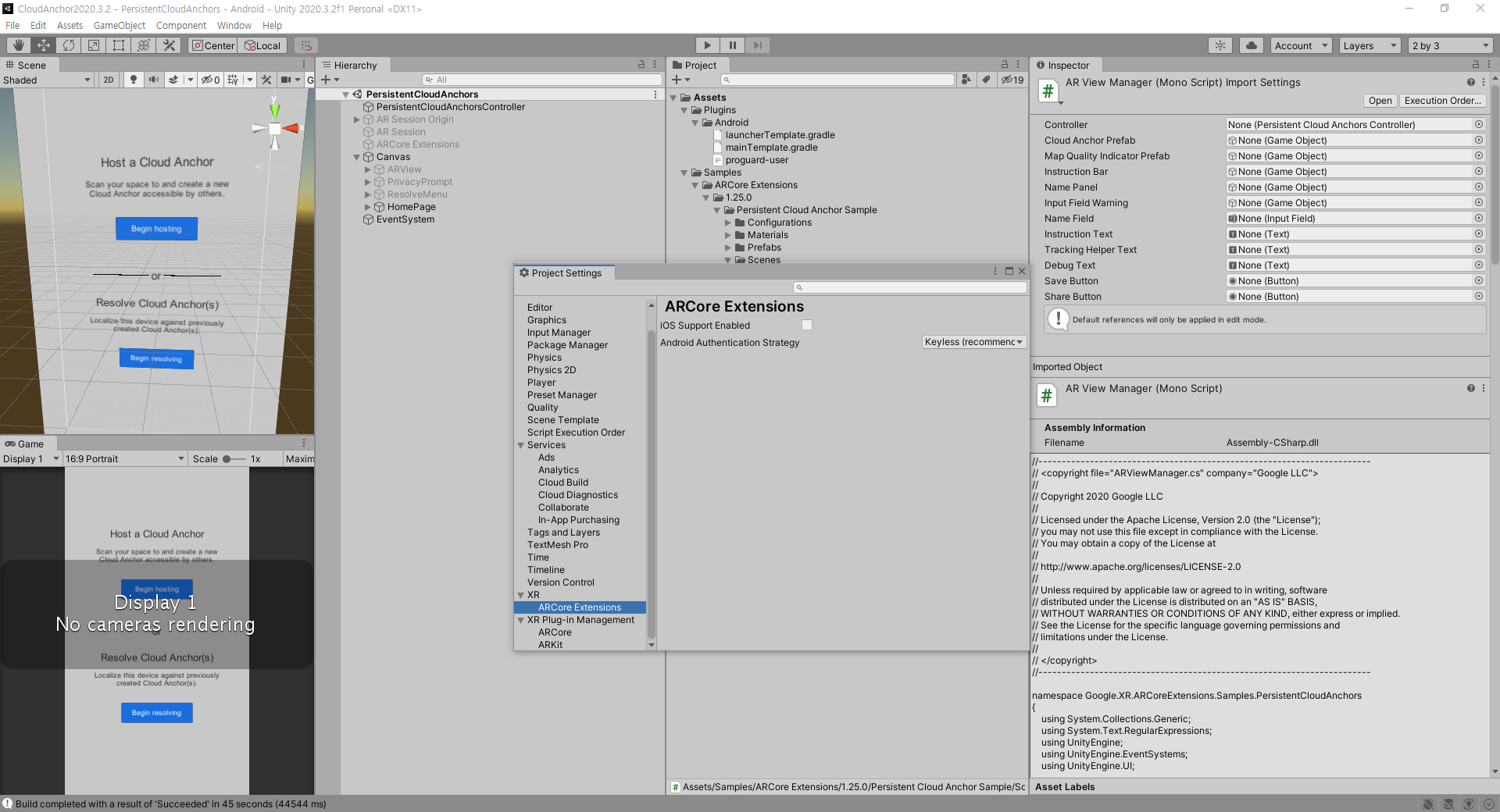

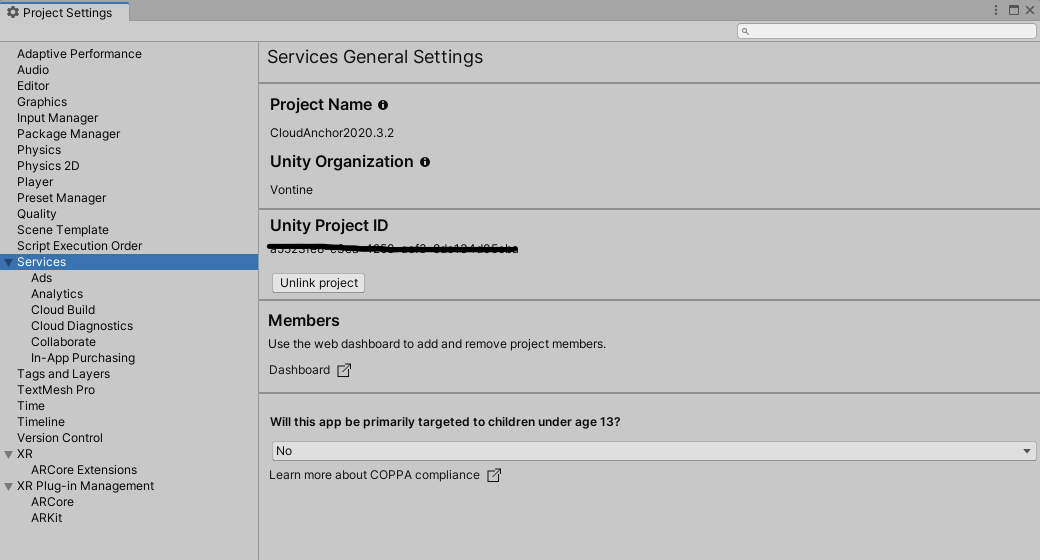

Set up project service

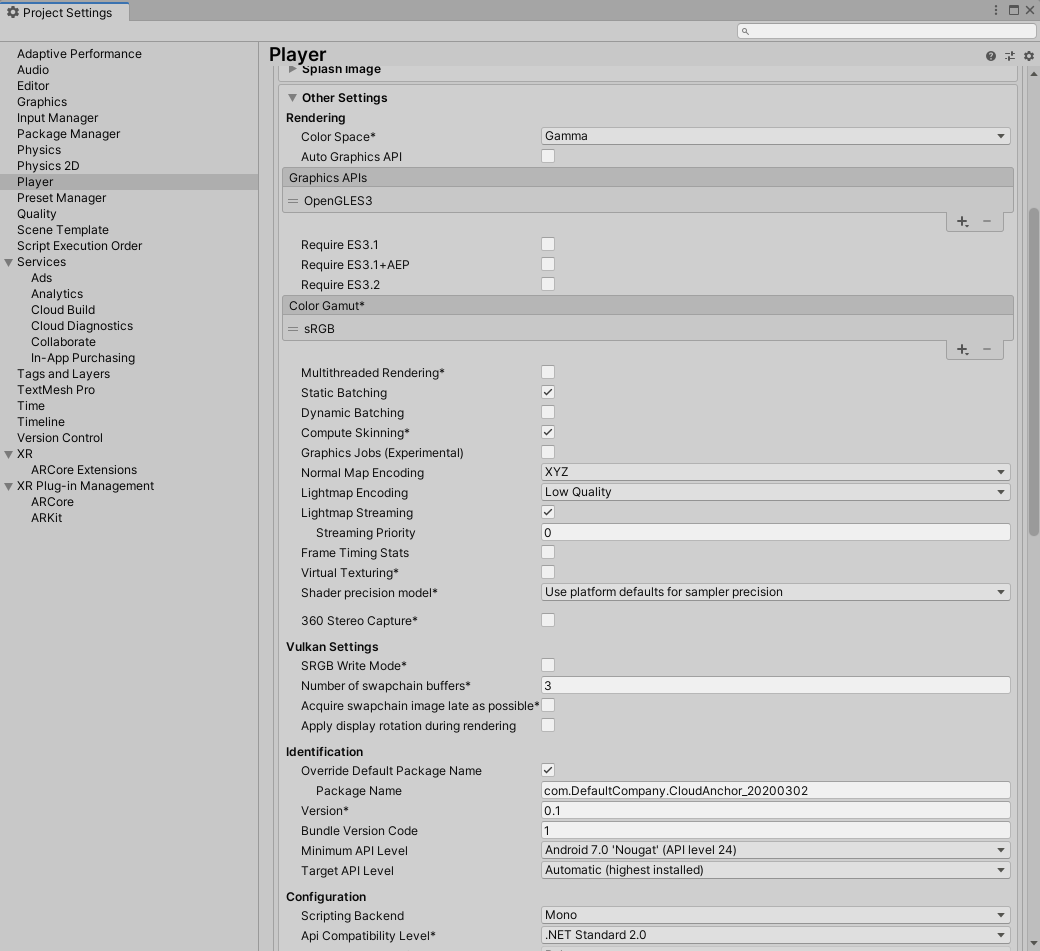

Delete Vulkan, Multithreaded Rendering uncheck, Minimum API Level 7.0

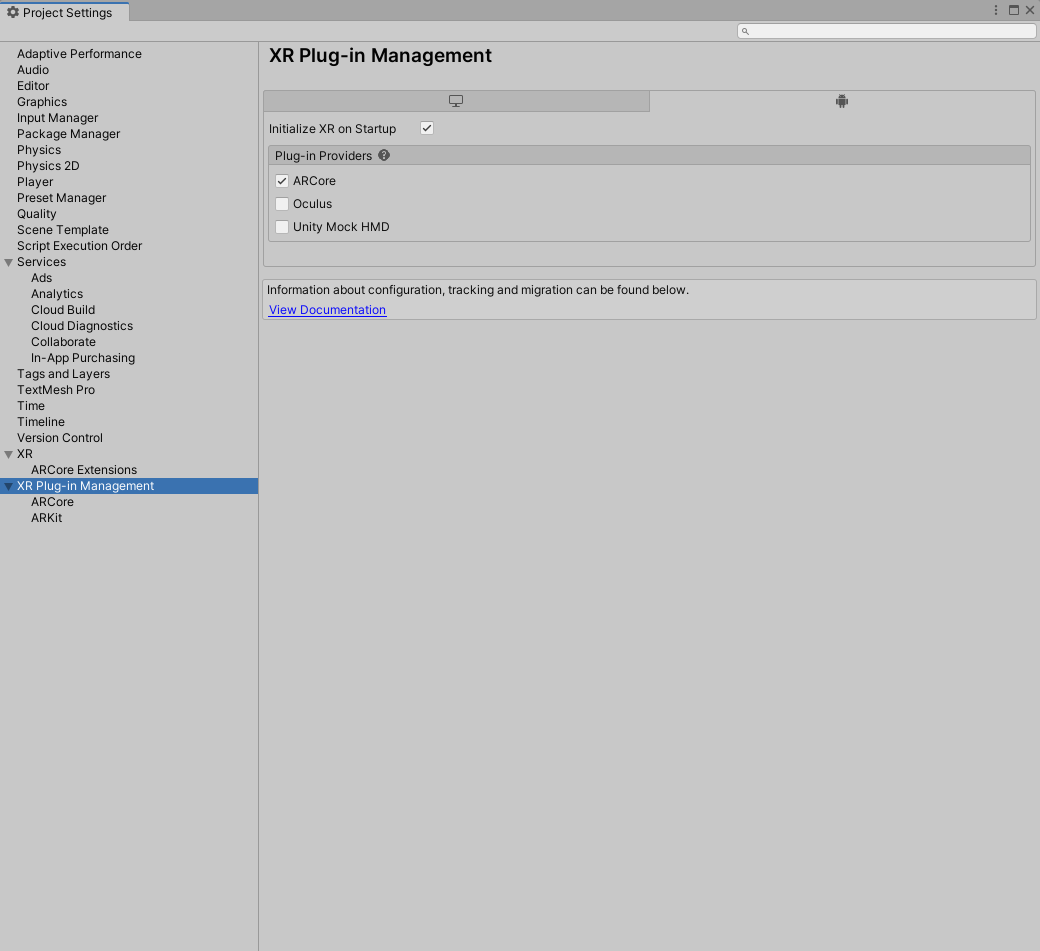

ARCore check

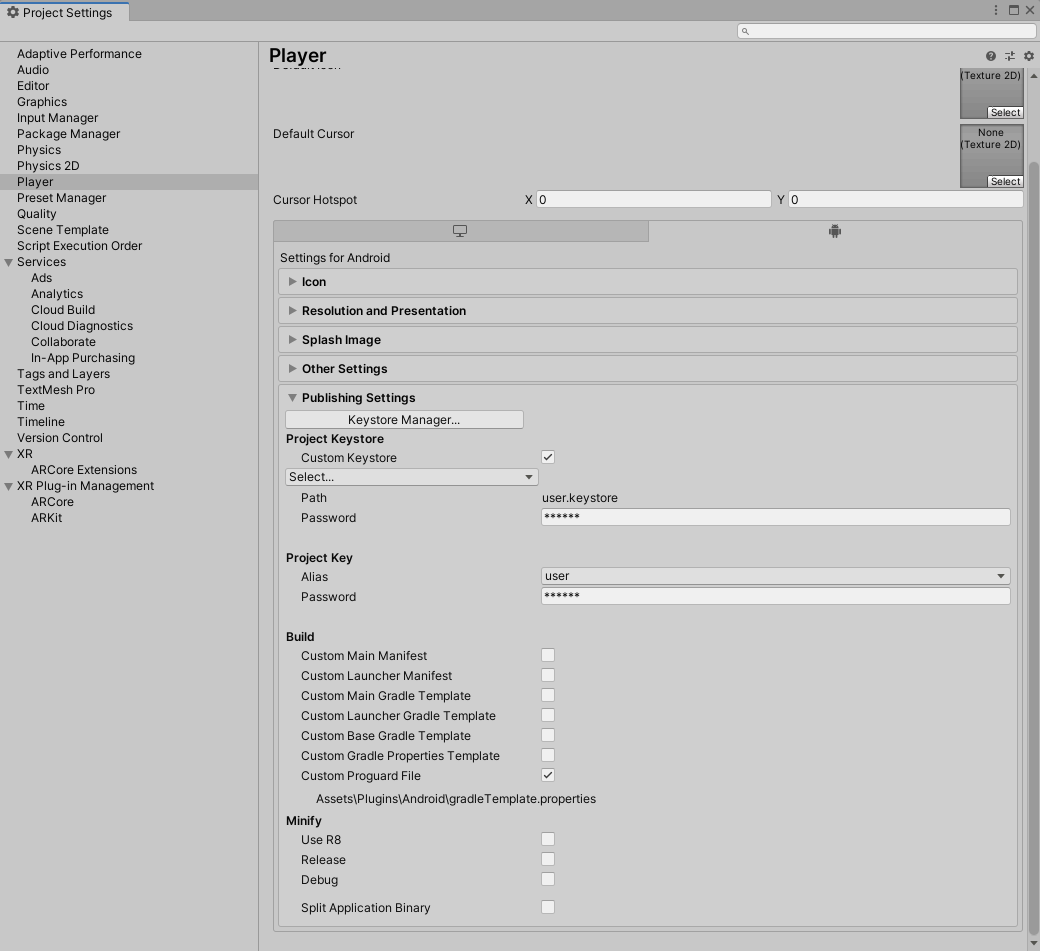

Make own Keystore

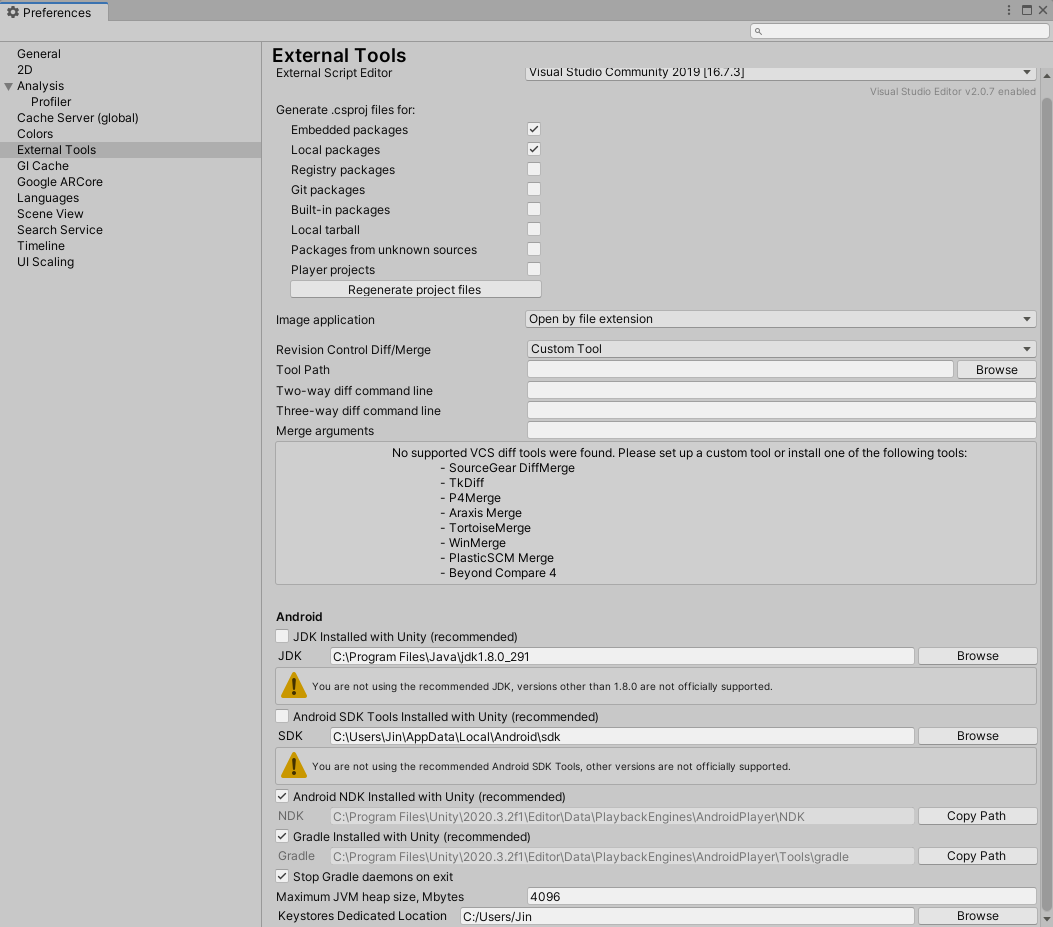

External Tools

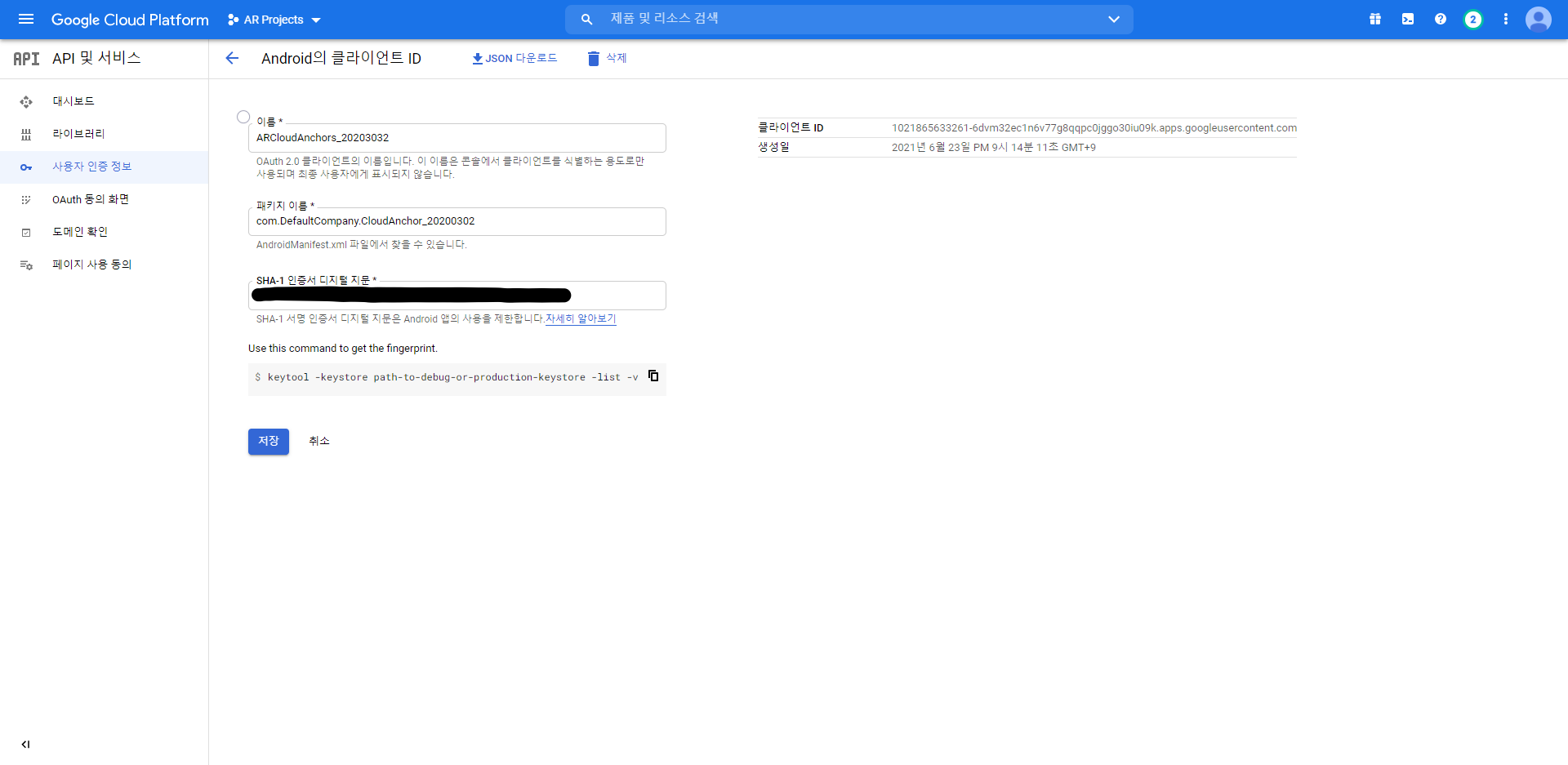

OAuth 2.0 Client ID

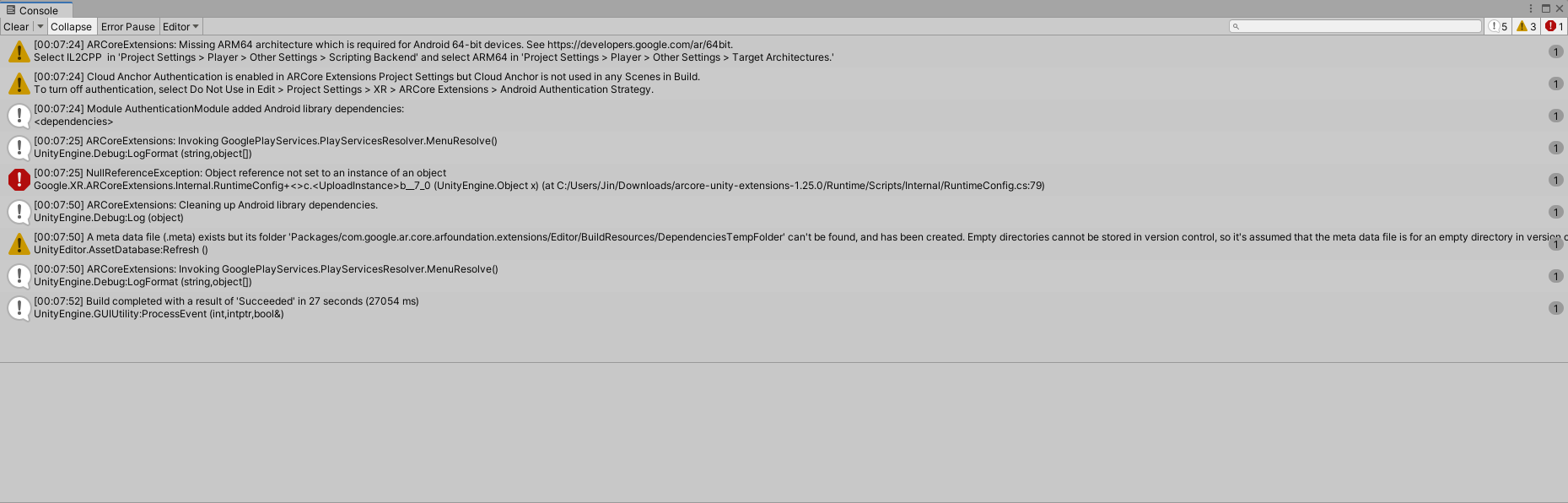

When build Completed, has 1 error

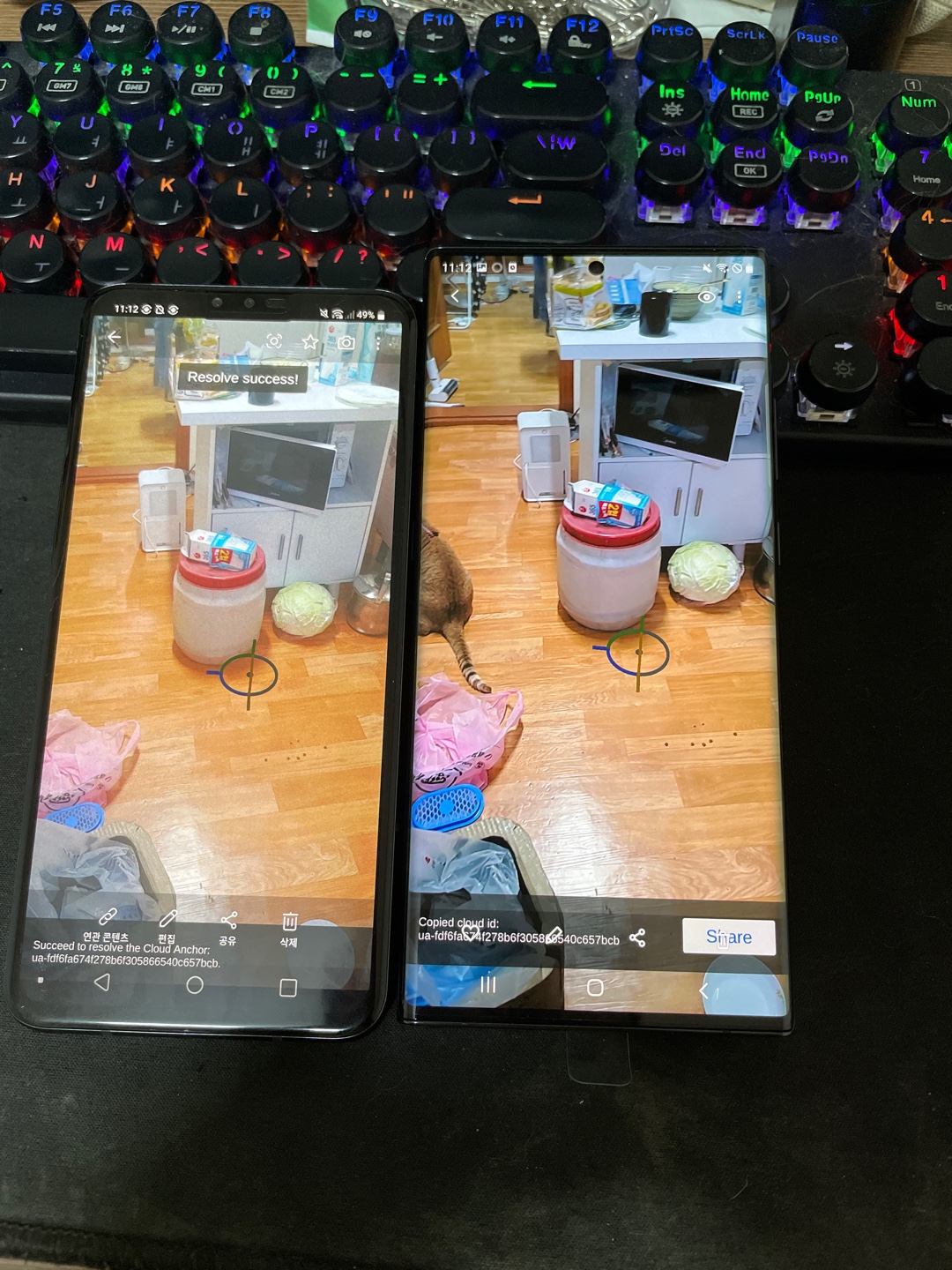

Left-Resolved Anchor               Right-Hosted Anchor



Build File

CloudAnchor2020302.z01

10.00MB

CloudAnchor2020302.z02

10.00MB

CloudAnchor2020302.zip

0.15MB
